LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)

LF-24-365-24.2X16-QG
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 24.2x16mm (24 Volt, 2835, IP64)
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)
LuxaLight Industrial LED Fixture Quartz Glass UV-A 365nm 26.6x23.5mm (24 Volt, 2835, IP64)

Log in or register to view prices

  • Free shipping within NL for € 250+ orders
  • B2B only

Our measuring results

Highlights





Technical specifications

General

Brand
LuxaLight
Application
Curing & Aging
Machine Vision
UV Inspection
LED type
2835
Material
Aluminum
Dimensions
220 × 266 × 235 mm
Mounting
Surface mounted
Cover type
Quartz glass
LEDs per piece
108.00
Lighting

Wave length UV
365 nm
Irradiance
Value Measuring distance
379,3 W/m2 50 mm
209,2 W/m2 75 mm
137,3 W/m2 100 mm
43,1 W/m2 200 mm
21,58 W/m2 300 mm
12,6 W/m2 400 mm
7,3 W/m2 600 mm
Beam angle
120 °
Electronics

Current per piece
1.25 A / piece
Power consumption per piece
30.00 W / piece
PCB material
Environmental

Operating temperature min
-5.00 °C
Operating temperature max
60.00 °C
Storage temperature min
-5.00 °C
Storage temperature max
60.00 °C
IP class
IP 64
Directives / warranty

Directives
RoHS 2002/95/EC Compliant
EMC 2004/108/EC Compliant
CE Marking

Product description

The LuxaLight Industrial LED Fixture UV-A 365nm is characterized by a high durability and long life-time, even under harsh and demanding conditions. The PCB is made of aluminum and has a silicone coating (IP64) so ​​that the LED engine can be used in a humid environment.

In combination with the MaNima Pollux Industry, it is possible to significantly increase the output of the LED Fixture. For more information about the MaNima System click here.

This fixture is provided with a quartz glass cover to maintain efficiency while having high mechanical protection.

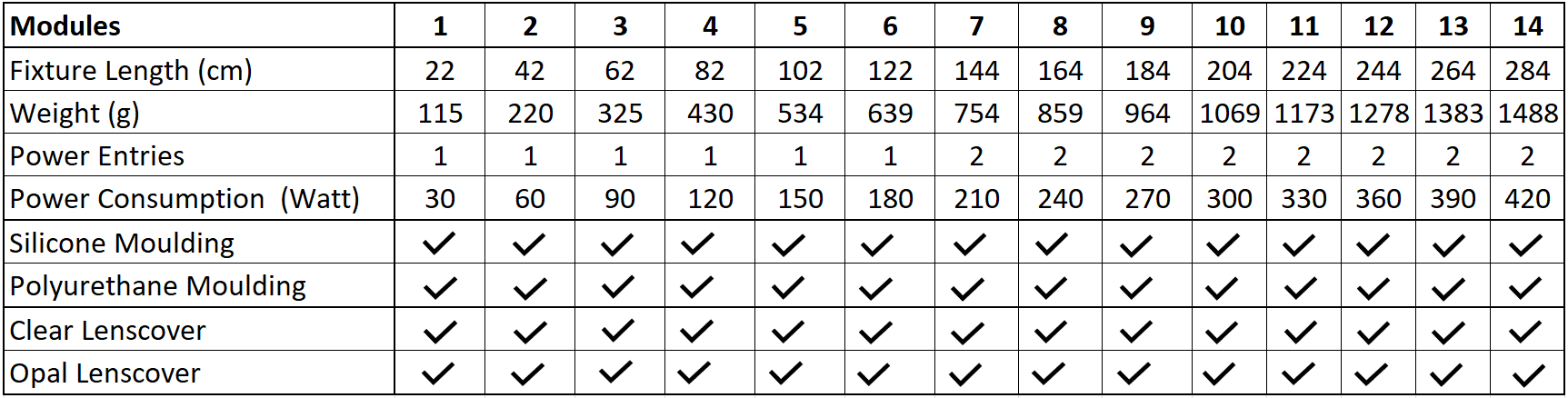

The LuxaLight Industrial LED Fixture U-A 365nm is a modular product, which setup can be configured. Go to: LuxaLight industrial LED Fixtures for more information.

For more information about LED solutions in the industry see: Horticulture, Machine Vision, Curing and Disinfection.
